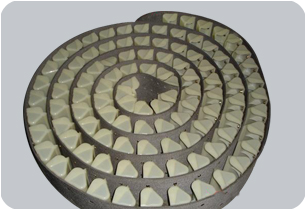

We introduce this Revolutionary ISWI SOFRA™ Bucket Elevator Belting, Which is specially designed with our vast experience in Bucket Elevator Belt which are used in various Bulk Material Handling, Grain Dryers, Silo Feeding & Food Processing Industries.

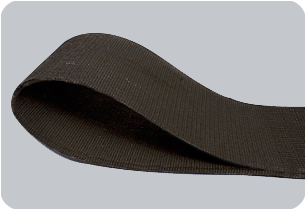

We are Manufacturers of SOFRA™ Solid Woven Belting from width 50MM to 406 MM & thickness 3MM to 10 MM which are used in severe load conditions where other types Belts (i.e. Rubber & Polymer Belts) fail to perform .
"SOFRA™ " Stands for - Static, Oil Resistant, FDA, Heat Resistant, & Non Abrasive. (MeetsFDA, is USDA accepted)
TECHNICAL DATA |
|
SOFRA™ BELT |
RUBBER BELT |
TOTAL TENSILE STRENGHT (Per Inch Per Feet) |
2800 KG / 8MM |
1500KG / 5 Ply |
NUMBER OF PLIES |
Nil |
2/3/4/5 Ply |
COATING THICKNESS in mm. |
Nil |
1MM to 3.5MM |
TOTAL THICKNESS in mm. |
5MM to 10MM |
5MM to 12MM |
WEIGHT |
30% Less Then Rubber Belt |
As Per Thickness |
HEAT RESISTANT |
Upto 120°C |
Upto 80°C |
OIL RESISTANT |
Yes |
No |
PLY SEPERATION |
Nil |
Yes |
FDA |
Yes |
No |
----------------------------------------------------------------------------------------------------------------------------------------------------
Note : All the Above Mentioned Specification can vary according to different applications of belts in actual working conditions. |
|
